Low Frequency Elastomer Isolators Marine

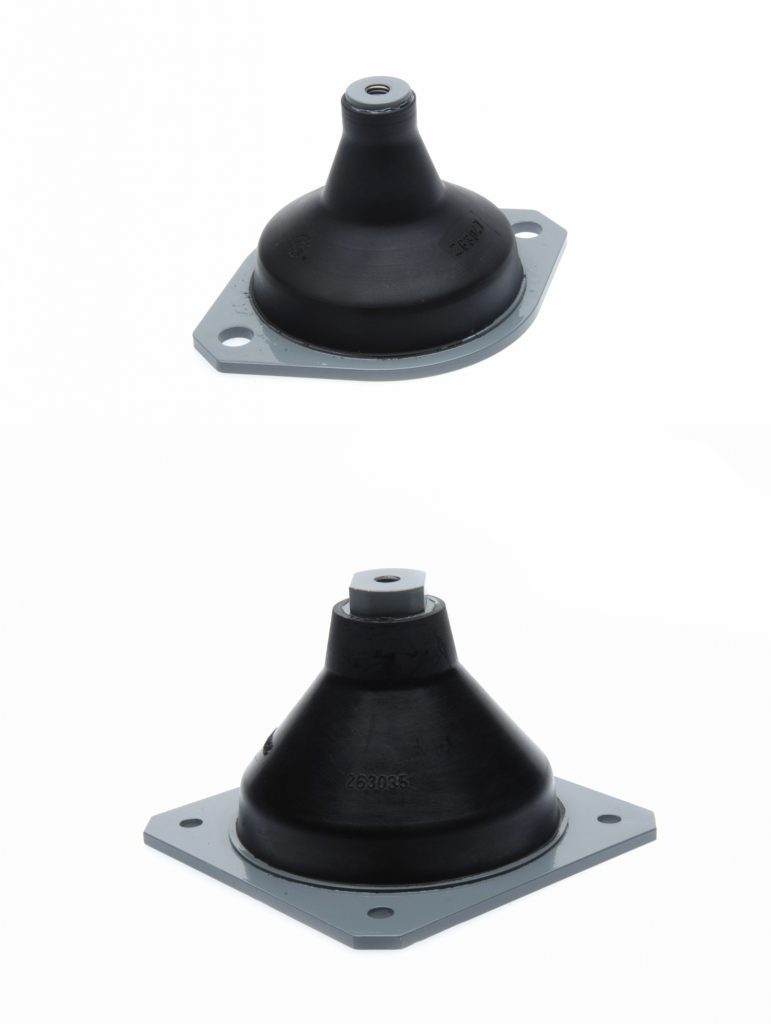

Marine elastomer mounts are designed for the Navy to provide multi-directional isolation of shocks and vibrations for naval activities. Vibro/Dynamics produces five specific ranges: low-frequency polychloroprene mounts (VBF45, VBFJ, VBFL, and VBFM) and the VBFN45 low-frequency natural rubber mount.

  • The VBF45 marine elastomer isolators feature 1 and 4 fixture points for static loading per mount of 67 to 2400 lbf
  • The VBFJ marine elastomer isolators feature 1 and 2 fixture points for static loading per mount of 22 to 290 lbf
  • The VBFL marine elastomer isolators feature 1 and 2 fixture points for static loading per mount of 9 to 27 lbf
  • The VBFM marine elastomer isolators feature 1 and 4 fixture points for static loading per mount of 9 to 27 lbf
  • The VBFN45 marine elastomer isolators feature 1 and 4 fixture points for static loading per mount of 67 to 2400

Properties

  • Multi-directional shock/vibration isolation
  • Displacement under shock up to 2.75 in
  • (depending on model)
  • Transmissibility: Q <10
  • Temperature range: -20°F to +210°F
  • Highly adaptable: special models on request (materials, size and interfaces, etc.)
Elastomer Naval Shock Mounts

CHARACTERISTICS
