MX Isolators Precision Leveling MX Series

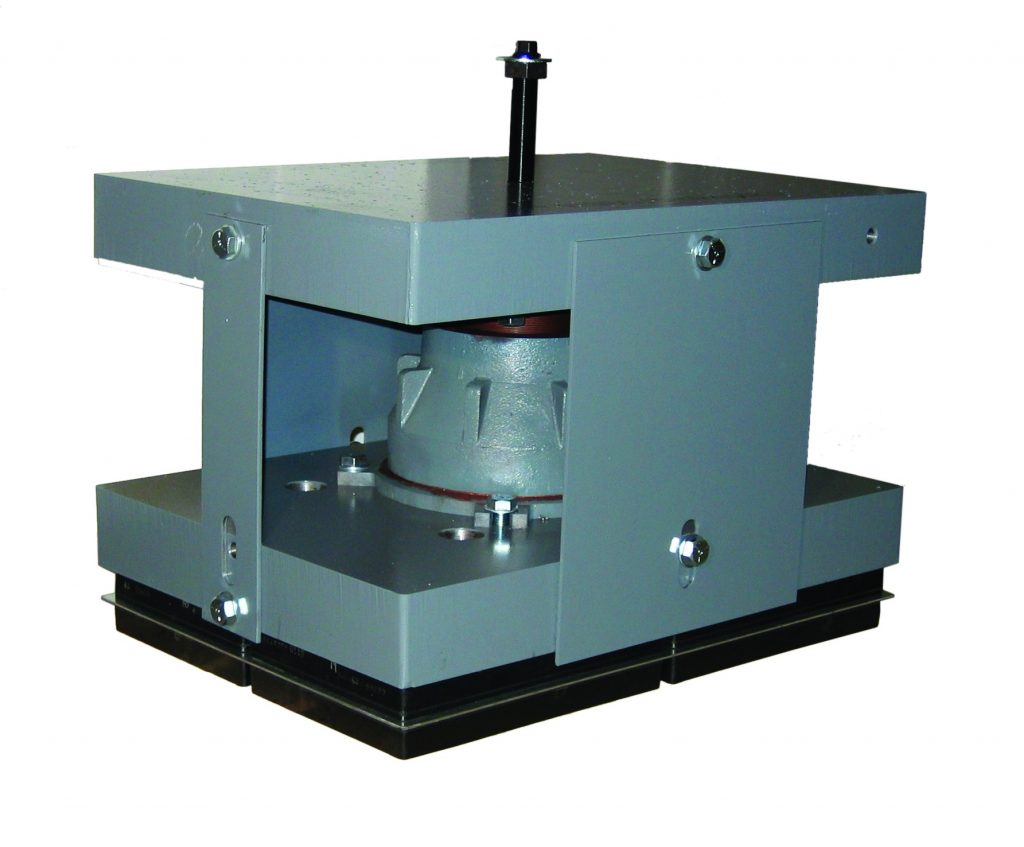

Vibro/Dynamics MXL & MXLP Series Micro/Level Isolators are designed for the free-standing support of large stamping presses weighing from 113 to over 2270 metric tons. (250,000 to over 5 million lbs.).
This innovative patented design combines multiple-layer modular elastomer isolation technology capable of dynamic natural frequencies as low as 8 Hz, for highly effective vibration and shock isolation.
These anchorless isolators have a built-in leveling system, adjustable by hand, capable of 0.02″ (.5mm)- 2.0″ (50mm) elevation adjustment.
Swivel feature compensates for up to 2 degrees of support surface slope, eliminating the need for shims and grout plates.
The popular Hydra/Level® hydraulic lift-assist feature means built in openings for hydraulic rigging cylinders for fast, easier leveling, and elevation adjustment of the biggest presses. This also provide insurance in the event of foundation settling and the need to re-level.
