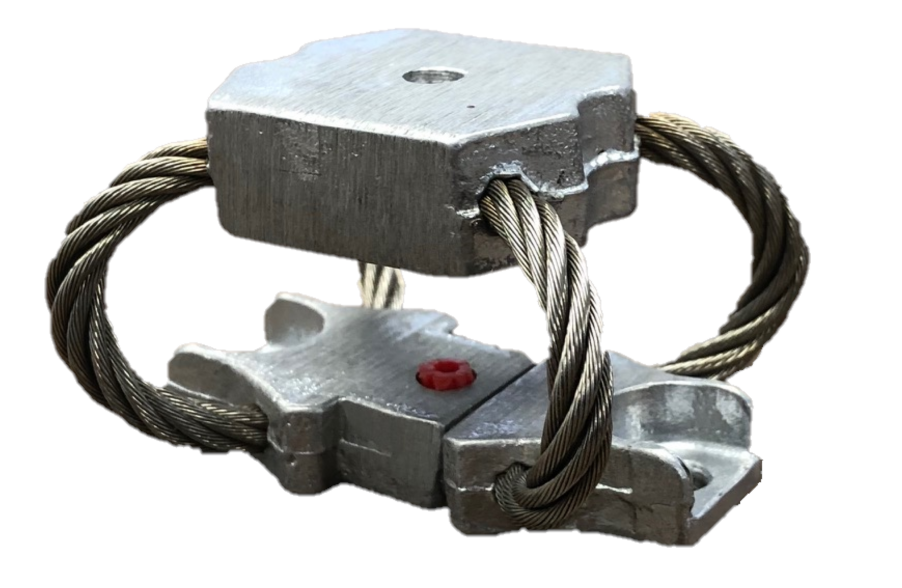

Wire Rope Isolators Polycal

Polycal isolators are multidirectional wire rope isolators that provide protection against shock and vibration, especially during transport and handling of sensitive equipment in harsh climatic and/or mechanical environments.

Properties

• All metal multidirectional wire rope isolator
• Combined shock and vibration isolation from 5 Hz upwards
• Interface : one fixture point to equipment and two fixture points to foundation (reversible)
• Exceptional reliability and lifetime
• Superior temperature range: -290 ° F to + 570 ° F
• Static loading per isolator: 0.22 lbf to 1.1 kipf
• Damping ratio: 15-25% (viscous equivalent)

Application Sectors

• Defense Industry
• Aerospace
• Nuclear
• Oil Research
• Railways
• Medical
