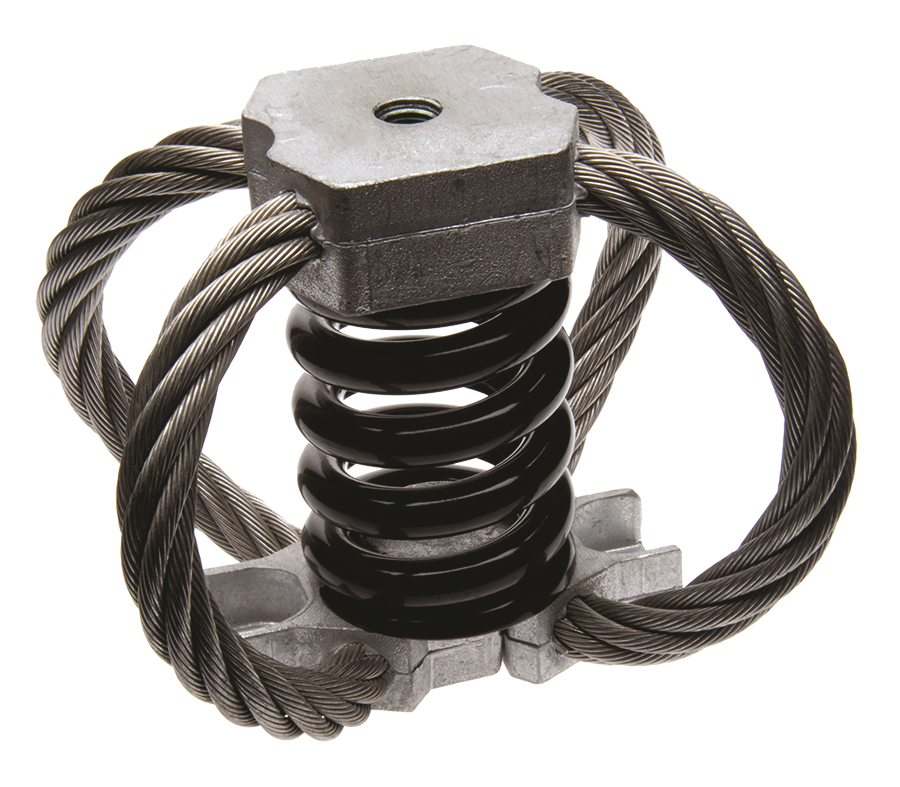

Wire Rope Isolators Spring Polycal

Spring polycal isolators are a combination compression wire rope and coil spring isolators that provide excellent isolation of vibration.

Properties

  • All metal coil spring and wire rope isolator
  • Low frequency isolation
  • Fixation: one fixture point to equipment and two fixture points to foundation(reversible)
  • Exceptional reliability and lifetime
  • Superior temperature range: -290 ° F to + 570 ° F
  • Static loading per isolator: 1.1 lbf to 4.4 kipf
  • Damping ratio: 5-10% (viscous equivalent)

Application Sectors

  • Manufacturing
  • Defense Industry
  • Aerospace
  • Nuclear
  • Oil Research
  • Railways
  • Medical
wire rope isolator spring polycal

Characteristics

A large range of models are available, suitable for orientation in compression.
