Low Frequency Elastomer Isolators Transport

Vibro/Dynamics offers three types of transport elastomer isolators:

  • VBFB transport elastomer isolators have 1 and 2 fixture points and are suitable for static loading of 30 to 270 lbf
  • VBFC transport elastomer isolators have 1 and 4 fixture points and are suitable for static loading per mount of 70 to 2700 lbf
  • VBFCO transport elastomer isolators are EPDM isolators. They have 1 and 4 fixture points, and are suitable for loading of 70 lbf to 660 lbf

Properties

  • Multi-directional shock/vibration isolation
  • Up to 1.5 in displacement under shock (depending on model)
  • Transmissibility: Q <6 or Q <10
  • Max static load: 3g
  • Between 8 Hz to 14 Hz resonant frequency
  • Up to 0.05 in max peak response at resonance
  • Temperature range: -20°F to +210°F
  • Highly adaptable: special models on request (materials, size, and interfaces, etc.)

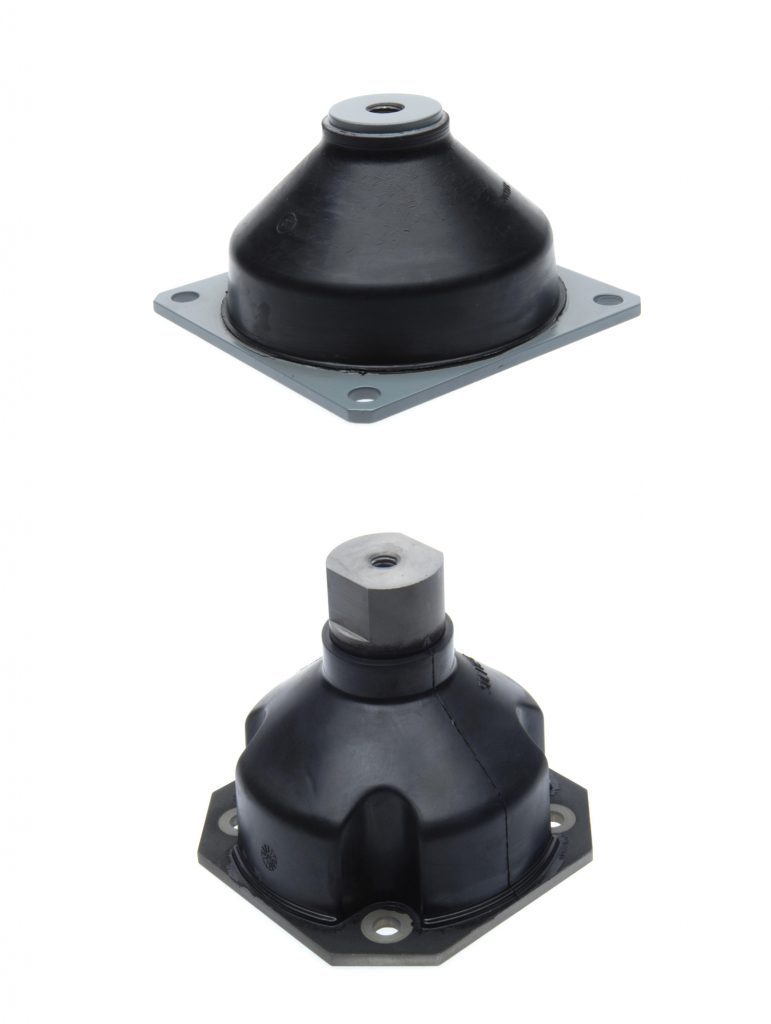

Elastomeric transport shock mounts
