Coil Spring Isolators VS Spring Isolators

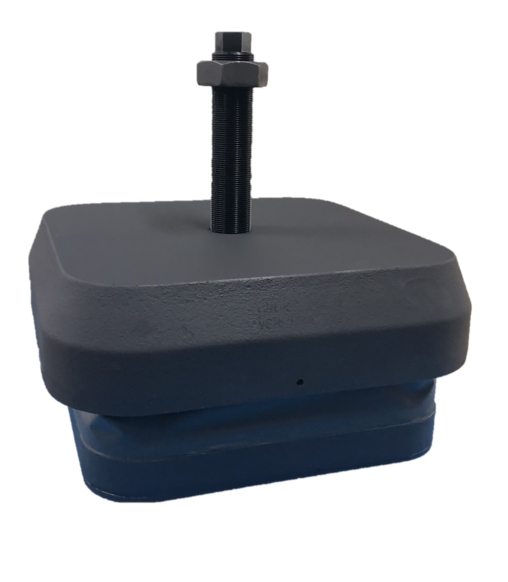

Vibro/Dynamics Lo/Tuned™ spring isolators feature a low frequency (2-3 Hz) design that is extremely effective in protecting sensitive areas from incoming vibration and shock. These spring isolators greatly reduce the transmission of vibration and shock produced by high-speed machinery.

Lo/Tuned™ Spring Mounts come with either material or viscous damping, and an optional
built-in leveling feature is also available.

Properties

  • Internal precision leveling feature available for fast and easy leveling.
  • Viscous (VSX) and material damping (VSM) available
    • Viscous damping is best suited for machines that pass through resonance slowly and have large out-of-balances inertia forces relative to machine weight, or whose speed is close to resonance
    • Material damping is best suited for machines that have small out-of-balance forces relative to machine weight, pass through resonance quickly, and operate at a speed at least 1.5 times the natural frequency of the isolator
  • Rugged design for long effective product life
  • High quality elastomer cushion creates uniform contact between isolator and foundation, and isolates high frequency coil spring material resonance
  • Customization available to meet demands of any application

Typical Applications

  • High speed presses
  • Turret punch presses
  • Dynamically balanced presses
  • Generators, compressors, pumps
  • Measuring equipment
  • Isolated foundations
  • Textile machinery
  • HVAC equipment
  • Gear shapers and hobbers
  • Other high-speed machinery with low inertia force
